我先說,這不一定適用所有其他非Android的usb驅動
這就要煩請你自已測試了,如有成功可以不吝分享給我

這是一篇不是給初學者看的文章,裡面盡是一堆歪招 haha

-----------------------------------------------------------------------------

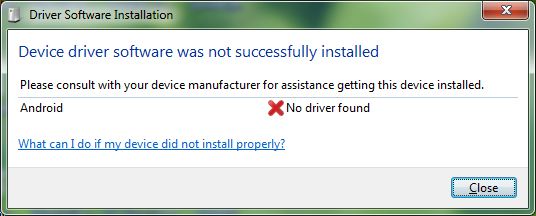

之前我遇到一台白牌機的Android驅動裝不上,問了朋友他說

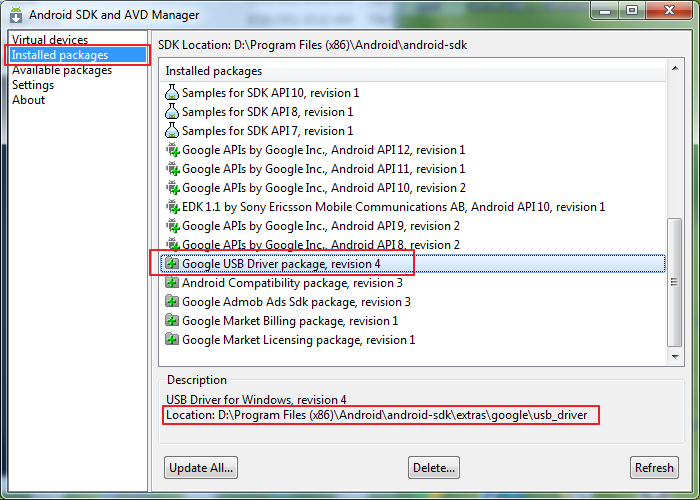

到SDK manager裡面,要確定一個叫做Google USB Driver有安裝



2011-08-20 01 54 28.png

2011-08-20 01 55 34.png

然後

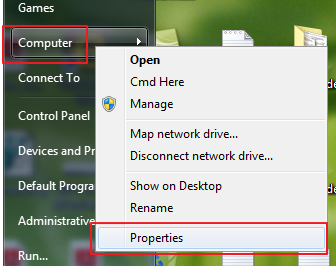

在我的電腦 右鍵 > 內容  找到裝置管理員

2011-08-20 01 45 09.png2011-08-20 01 46 32.png

找到Android

2011-08-20 01 47 22.png

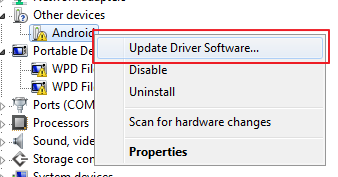

右鍵 > 更新驅動程式

2011-08-20 01 48 39.png

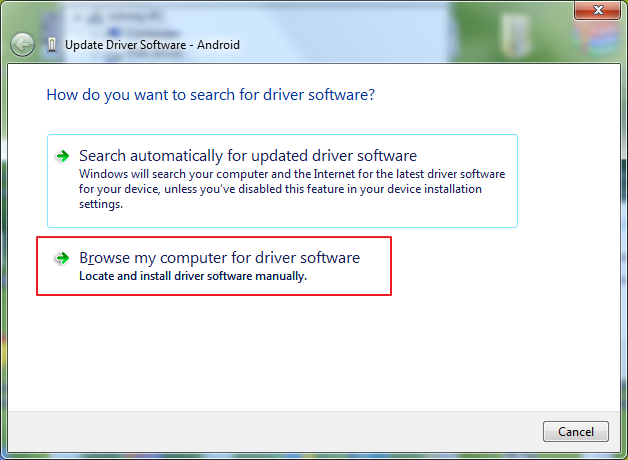

選擇 Browse my computer for driver software

2011-08-20 01 49 28.png

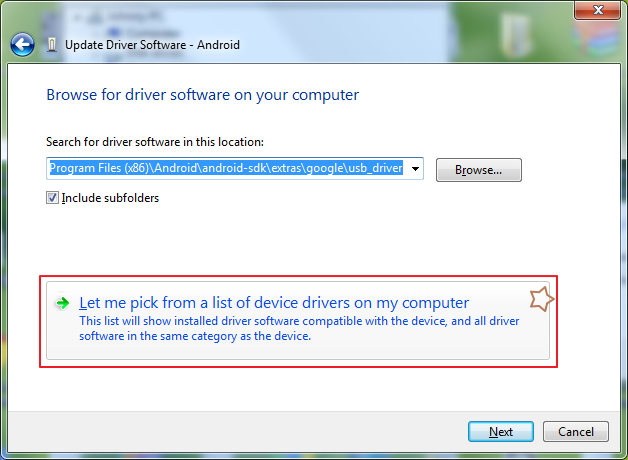

這個是重點,Let me pick from a list device drivers on my computer

2011-08-20 01 49 52.png

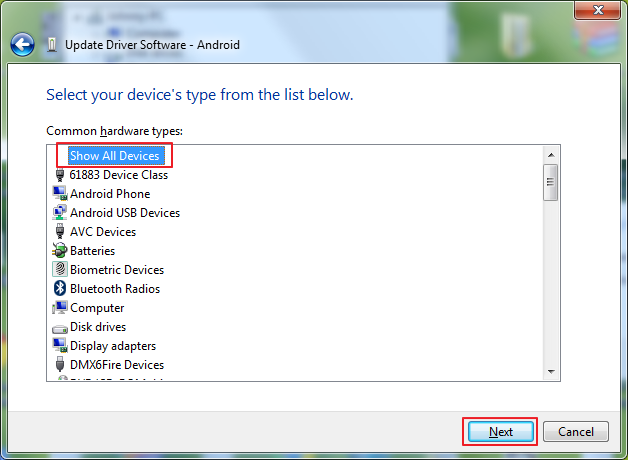

到了選擇類型的頁面,選Show All Devices,直接按下一步

2011-08-20 01 50 56.png

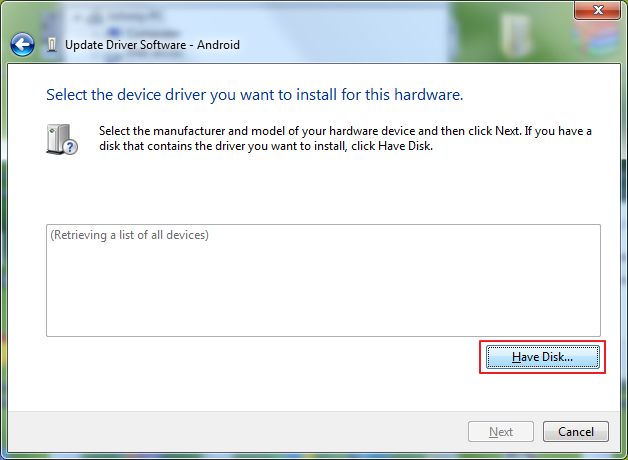

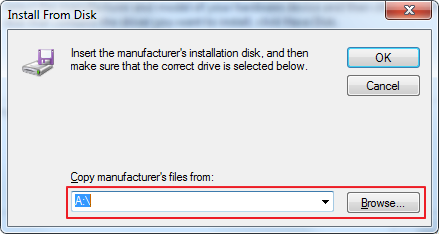

按下have Disk.....   (從磁片安裝)

2011-08-20 01 51 38.png







選擇其路徑



然後選擇路徑      <你裝的android SDK的路徑>\extras\google\usb_driver\android_winusb.inf

我的是

C:\Program Files\Android\android-sdk\extras\google\usb_driver\android_winusb.inf

2011-08-20 01 51 52.png

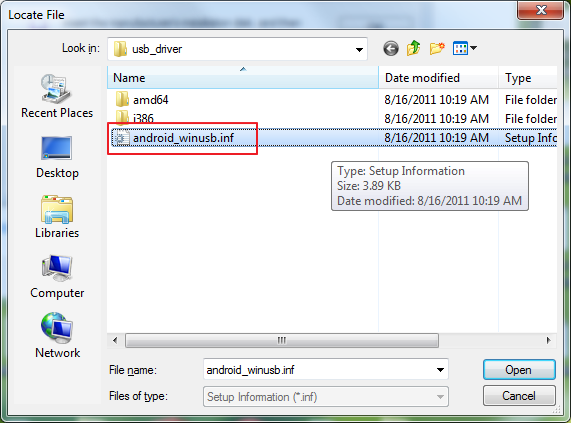

找到android_winusb.inf

2011-08-20 01 53 33.png

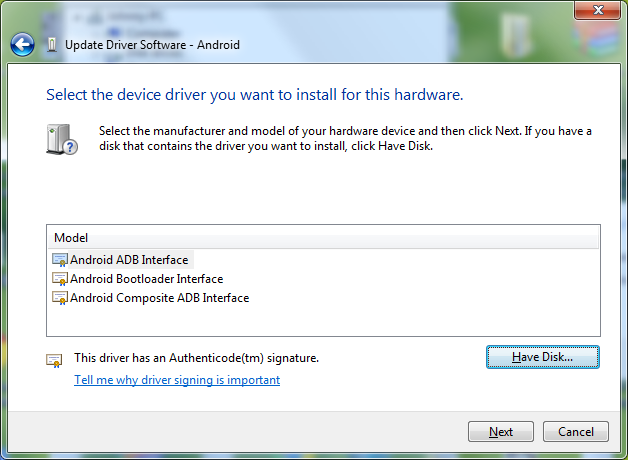

就會有三個可以選,隨便選,但通常是第一個

2011-08-20 01 52 25.png

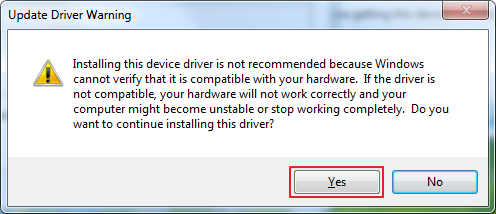

詢問驅動程式簽章事宜,直接按確定繼續

2011-08-20 01 52 36.png



就安裝完成了

2011-08-20 01 52 58.png



------------------------------------------------------------------------------------

如果你的驅動已經安裝完畢的話就不用看這篇了

搞不定的話請跟我一起繼續奮鬥.........





我的win7裝好了  但xp遲遲無法這樣安裝













有一天,我無意間開了android_winusb.inf

這才恍然大悟



有了這一招,應該沒有所謂的上不了的驅動

只是上了會不會跳藍底白字的畫面而已



-----------------------------------------------------------------------------

2011-09-03 03 14 08.png



這是Google USB Driver, r4

裡面的android_winusb.inf  內容



;
; Android WinUsb driver installation.
;
[Version]
Signature           = "$Windows NT$"
Class               = AndroidUsbDeviceClass
ClassGuid           = {3F966BD9-FA04-4ec5-991C-D326973B5128}
Provider            = %ProviderName%
DriverVer           = 12/06/2010,4.0.0000.00000
CatalogFile.NTx86   = androidwinusb86.cat
CatalogFile.NTamd64 = androidwinusba64.cat


;
; This section seems to be required for WinUsb driver installation.
; If this section is removed the installer will report an error
; "Required section not found in INF file".
;
[ClassInstall32]
Addreg = AndroidWinUsbClassReg


[AndroidWinUsbClassReg]
HKR,,,0,%ClassName%
HKR,,Icon,,-1


[Manufacturer]
%ProviderName% = Google, NTx86, NTamd64


[Google.NTx86]

%SingleAdbInterface%        = USB_Install, USB\Vid_18d1&Pid_0005&Rev_0223&MI_01
%SingleAdbInterface%        = USB_Install, USB\Vid_18d1&Pid_0005&MI_01

; HTC Dream

%SingleAdbInterface%        = USB_Install, USB\VID_0BB4&PID_0C01
%CompositeAdbInterface%     = USB_Install, USB\VID_0BB4&PID_0C02&MI_01
%SingleBootLoaderInterface% = USB_Install, USB\VID_0BB4&PID_0FFF
; HTC Magic
%CompositeAdbInterface%     = USB_Install, USB\VID_0BB4&PID_0C03&MI_01
;
;Moto Sholes
%SingleAdbInterface%        = USB_Install, USB\VID_22B8&PID_41DB
%CompositeAdbInterface%     = USB_Install, USB\VID_22B8&PID_41DB&MI_01
;
;Google NexusOne
%SingleAdbInterface%        = USB_Install, USB\VID_18D1&PID_0D02
%CompositeAdbInterface%     = USB_Install, USB\VID_18D1&PID_0D02&MI_01
%SingleAdbInterface%        = USB_Install, USB\VID_18D1&PID_4E11
%CompositeAdbInterface%     = USB_Install, USB\VID_18D1&PID_4E12&MI_01
%CompositeAdbInterface%     = USB_Install, USB\VID_18D1&PID_4E22&MI_01


[Google.NTamd64]
; HTC Dream
%SingleAdbInterface%        = USB_Install, USB\VID_0BB4&PID_0C01
%CompositeAdbInterface%     = USB_Install, USB\VID_0BB4&PID_0C02&MI_01
%SingleBootLoaderInterface% = USB_Install, USB\VID_0BB4&PID_0FFF
; HTC Magic
%CompositeAdbInterface%     = USB_Install, USB\VID_0BB4&PID_0C03&MI_01
;
;Moto Sholes
%SingleAdbInterface%        = USB_Install, USB\VID_22B8&PID_41DB
%CompositeAdbInterface%     = USB_Install, USB\VID_22B8&PID_41DB&MI_01
;
;Google NexusOne
%SingleAdbInterface%        = USB_Install, USB\VID_18D1&PID_0D02
%CompositeAdbInterface%     = USB_Install, USB\VID_18D1&PID_0D02&MI_01
%SingleAdbInterface%        = USB_Install, USB\VID_18D1&PID_4E11
%CompositeAdbInterface%     = USB_Install, USB\VID_18D1&PID_4E12&MI_01
%CompositeAdbInterface%     = USB_Install, USB\VID_18D1&PID_4E22&MI_01


[USB_Install]
Include = winusb.inf
Needs   = WINUSB.NT


[USB_Install.Services]
Include     = winusb.inf
AddService  = WinUSB,0x00000002,WinUSB_ServiceInstall


[WinUSB_ServiceInstall]
DisplayName     = %WinUSB_SvcDesc%
ServiceType     = 1
StartType       = 3
ErrorControl    = 1
ServiceBinary   = %12%\WinUSB.sys


[USB_Install.Wdf]
KmdfService = WINUSB, WinUSB_Install


[WinUSB_Install]
KmdfLibraryVersion  = 1.9


[USB_Install.HW]
AddReg  = Dev_AddReg


[Dev_AddReg]
HKR,,DeviceInterfaceGUIDs,0x10000,"{F72FE0D4-CBCB-407d-8814-9ED673D0DD6B}"


[USB_Install.CoInstallers]
AddReg    = CoInstallers_AddReg
CopyFiles = CoInstallers_CopyFiles


[CoInstallers_AddReg]
HKR,,CoInstallers32,0x00010000,"WdfCoInstaller01009.dll,WdfCoInstaller","WinUSBCoInstaller2.dll"


[CoInstallers_CopyFiles]
WinUSBCoInstaller2.dll
WdfCoInstaller01009.dll


[DestinationDirs]
CoInstallers_CopyFiles=11


[SourceDisksNames]
1 = %DISK_NAME%,,,\i386
2 = %DISK_NAME%,,,\amd64


[SourceDisksFiles.x86]
WinUSBCoInstaller2.dll  = 1
WdfCoInstaller01009.dll = 1


[SourceDisksFiles.amd64]
WinUSBCoInstaller2.dll  = 2
WdfCoInstaller01009.dll = 2


[Strings]
ProviderName                = "Google, Inc."
SingleAdbInterface          = "Android ADB Interface"
CompositeAdbInterface       = "Android Composite ADB Interface"
SingleBootLoaderInterface   = "Android Bootloader Interface"
WinUSB_SvcDesc              = "Android USB Driver"
DISK_NAME                   = "Android WinUsb installation disk"
ClassName                   = "Android Phone"



-----------------------------------------------------------------------------

這份文件要從最後的[Strings]
這區塊開始看





2011-09-03 02 42 00.png

比對了一下,這個驅動

類別名叫Android Phone

驅動有三個,個別叫做

Android ADB Interface
Android Composite ADB Interface
Android Bootloader Interface

驅動有分32位元版和64位元版

紅字的部分就是我們要更動的



步驟如下:  (XP測試可用)

1.  先判斷你的作業系統是  32位元(x86)   還是  64位元(x64)

決定你這行是要加在 [Google.NTx86]   還是 [Google.NTamd64]  區塊

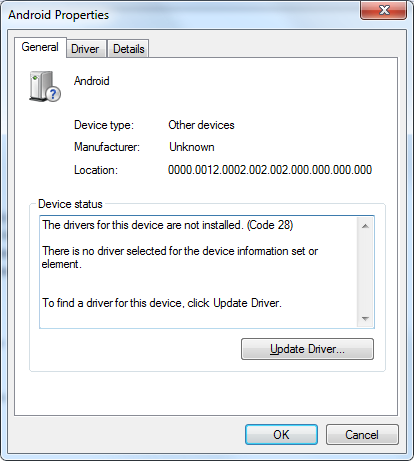

2.  找到裝置管理員,找到那驚嘆號的Android上面按一下   右鍵  ->  內容

2011-09-03 03 17 14.png

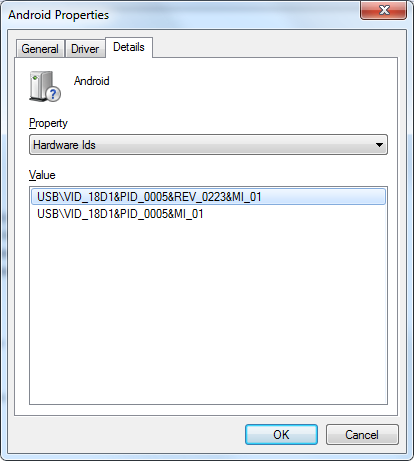

在詳細資料頁籤裡面,找到硬體識別碼  (Hardware Ids)  (這是重點)

2011-09-03 03 17 02.png

把這些文字選起來按 Ctrl +  C   然後在文字編輯器貼上



我的有二筆資料,如下




USB\Vid_18d1&Pid_0005&Rev_0223&MI_01
USB\Vid_18d1&Pid_0005&MI_01

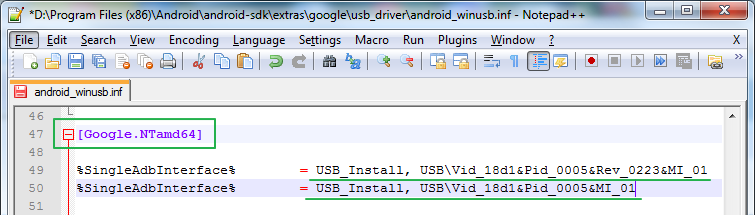

3.   依樣畫葫蘆,將文字加上去



%SingleAdbInterface%        = USB_Install, USB\Vid_18d1&Pid_0005&Rev_0223&MI_01
%SingleAdbInterface%        = USB_Install, USB\Vid_18d1&Pid_0005&MI_01

開頭至於要加哪一個(SingleAdbInterface , CompositeAdbInterface ),都試試看

2011-09-03 03 19 14.png





4.    然後就存檔,重新裝驅動看看,一定會抓到「非常合適」的驅動

因為你手動把他改上去了嘛   XDDD

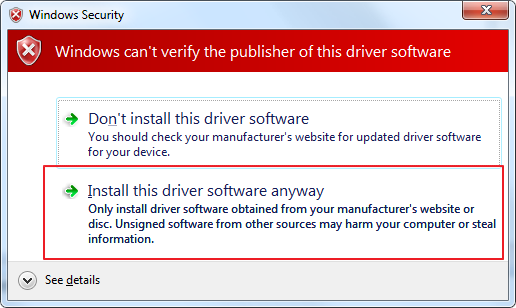

(Win7 會出現這個大紅色的警示視窗,不用裡他直接按Install this driver software anyway)

2011-09-03 03 20 49.png

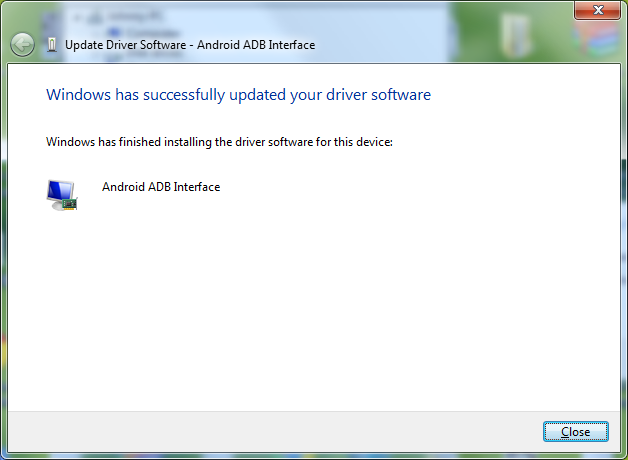

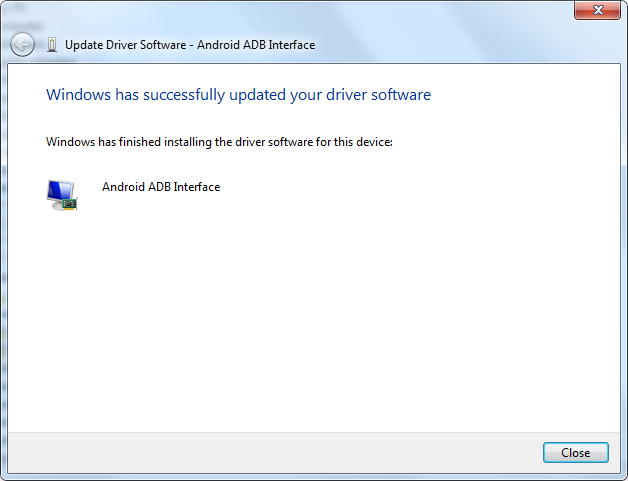

就安裝成功了

2011-09-03 03 21 12.png





5.   再來打開cmd  ,用cd 指令切到       <你裝的android SDK的路徑>\platform-tools

我的是

C:\Program Files\Android\android-sdk\platform-tools

然後鍵入指令

adb kill-server

然後再鍵入指令

adb start-server

重新啟動連接介面的程式



神奇的事情就發生了喔
我把驅動裝好了~~~~~~~~~~~
