最近因為需要,所以研究藍芽Mac OS X 上的 藍牙傳輸

才赫然發現,手邊的 Macbook 所搭載的是舊版藍牙模組是舊的,所以出現此文



確認你的 Macbook 型號是否支援

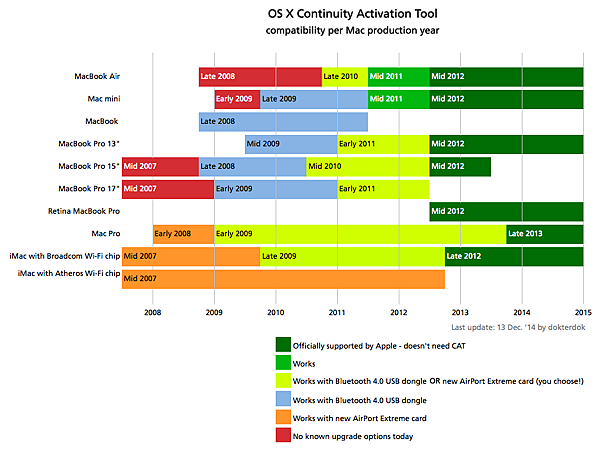

CompatibilityChart-13.12.2014

(資料來源:Continuity Activation Tool)

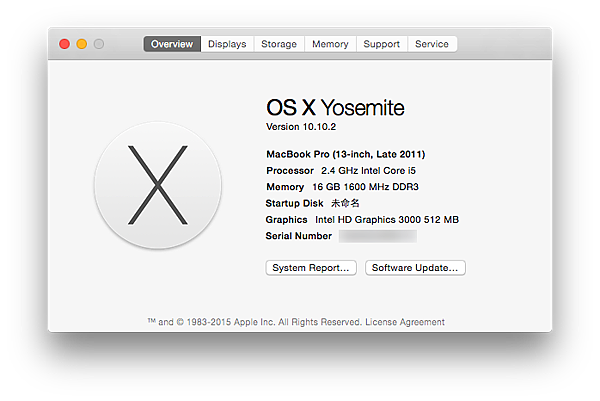

請去對照一下你的 Mac 型號,點左上角的蘋果 > About this Mac 就可以看到資訊

主要是落在 亮綠色 (Works) / 草綠色 (Works with Bluetooth 4.0 USB dongle OR new AirPort Extreme Card) / 藍色 (Works with Bluetooth 4.0 USB dongle)

就可以使用

小弟的電腦是 Macbook Pro 13" (Late 2011) 所以落在草綠色上

所以可以使用

Screen Shot 2015-02-27 at 8.36.27 PM



選購藍牙接收器

所需使用的必需要是 Broadcom BCM20702 的晶片(這也是Apple所使用的藍芽晶片)

市面上買的到的,小弟這裏列出幾個可供挑選

  • WellWhole WED-210 V4 藍芽迷你接收器 V4.0+EDR
  • IOGEAR GBU521 迷你型藍牙4.0 傳輸器藍芽接收器
  • KBTalking 藍芽接收器



當然還有其他的 Broadcom 晶片的,如果有看到歡迎不吝告知

採用 CSR (Cambridge Silicon Radio) 的晶片目前是不支援,選購時可要注意



安裝藍牙接收器

小弟是使用 WellWhole WED-210 V4 藍芽迷你接收器

就直接插進去就好了

IMG_8415

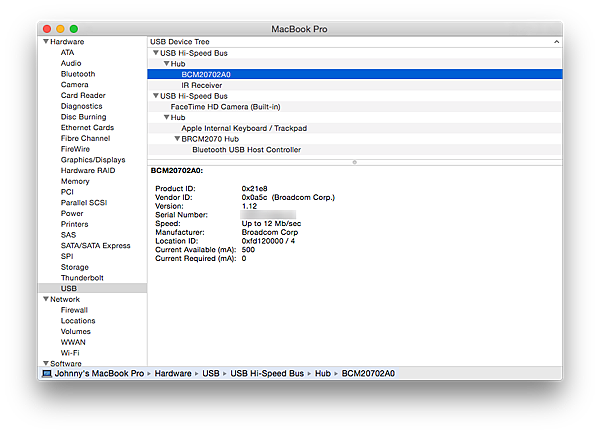

然後會在 系統資訊 USB 頁籤看到二個藍牙裝置

一個會寫 Broadcom Corp. 一個會寫 Apple Inc.

Screen Shot 2015-02-27 at 8.35.08 PM



使用工具Patch

主要是使用 Continuity Activation Tool 這個工具幫我們調整

主要位置在這

https://github.com/dokterdok/Continuity-Activation-Tool

下載位置在此

https://github.com/dokterdok/Continuity-Activation-Tool/archive/master.zip

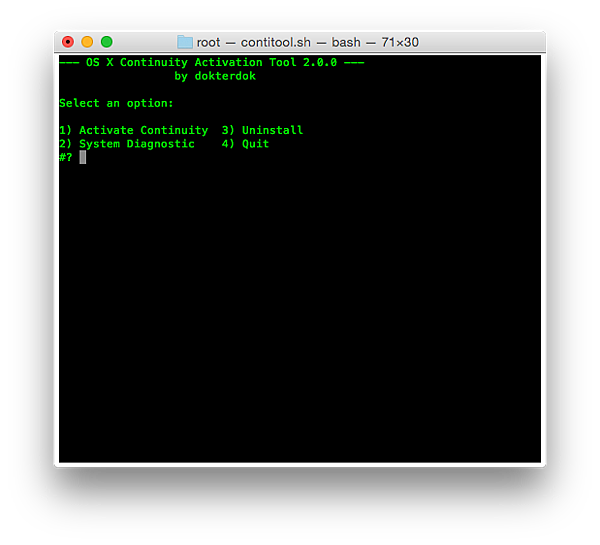

解壓縮之後,開啟 Continuity Activation Tool

中間會要你輸入您的使用者密碼

Screen Shot 2015-02-27 at 8.14.02 PM

會有

1) Activate Continuity

2) System Diagnostic

3) Uninstall

4) Quit

四個選項讓您選擇

填入數字1 按下Enter 開始Patch

安裝完成之後會提示你重開機

以下是小弟的安裝時的Log



--- OS X Continuity Activation Tool 2.0.0 ---
by dokterdok

--- Initiating system compatibility check ---

Verifying Mac model reference... OK
Verifying Mac board-id... OK
Verifying OS X version... OK
Verifying Wi-Fi hardware... OK
Verifying Bluetooth version... OK
Verifying Bluetooth features... OK
Verifying kexts readability... OK
Verifying Bluetooth blacklist status... OK
Verifying Wi-Fi whitelist status... OK
Verifying legacy Wi-Fi card patch... OK
Verifying old Wi-Fi kext presence... OK

--- Initiating Continuity mod ---

Disabling OS kext protection... OK
Fixing disk permissions... OK
Backing up original drivers... OK. Wi-Fi and Bluetooth kexts were backed up in '...'
Skipping blacklist patch... OK
Patching whitelist................ OK
Cleaning up old Wi-Fi kext... OK
Applying legacy Wi-Fi card patch... OK
Verifying BT4 dongle patch status... OK
Setting HCI switch behavior... OK
Patching Bluetooth feature flags... OK
Skipping legacy Wi-Fi cards patch... OK
Applying correct permissions... OK
Updating kext caches... OK
Updating system caches... OK
Backing up patched drivers... OK. Wi-Fi and Bluetooth kexts were backed up in '...'

ALMOST DONE! After rebooting:
1) Make sure that both your Mac and iOS device have Bluetooth turned on, and are on the same Wi-Fi network.
2) On OS X go to SYSTEM PREFERENCES> GENERAL> and ENABLE HANDOFF.
3) On iOS go to SETTINGS> GENERAL> HANDOFF & SUGGESTED APPS> and ENABLE HANDOFF.
4) On OS X, sign out and then sign in again to your iCloud account.
Troubleshooting: support.apple.com/kb/TS5458

Thanks to Lem3ssie, UncleSchnitty, Skvo, toleda, TealShark, Manic Harmonic, rob3r7o and the many beta testers for their support.



完成測試

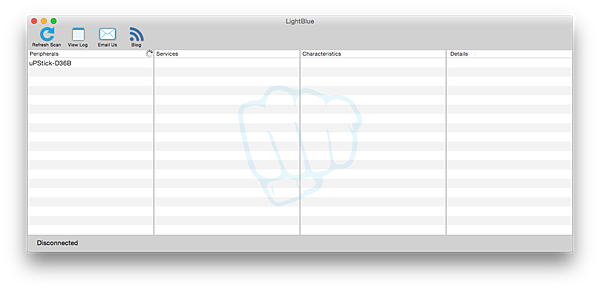

可以使用 Mac 版的 LightBlue 做測試

icon128-2x

請自 Mac App Store 下載

https://itunes.apple.com/tw/app/lightblue/id639944780?mt=12

下載完成看看能不能成功打開,而沒有收到需要開啟藍芽的提示
這樣就成功了

Screen Shot 2015-02-27 at 8.26.59 PM

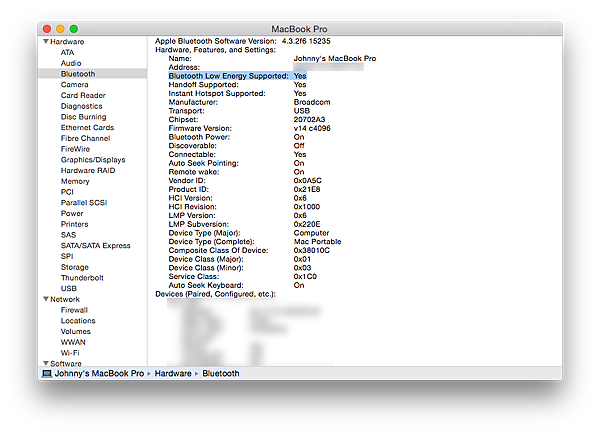

也可以在系統資訊看到

Bluetooth Low Energy Supported: Yes
Handoff Supported: Yes
Manufacturer: Broadcom
Transport: USB

這些字樣

Screen Shot 2015-02-27 at 8.40.35 PM



參考資料:

https://github.com/dokterdok/Continuity-Activation-Tool

https://justhackme.wordpress.com/2014/05/21/adding-a-ble-bluetooth-4-0-dongle-to-mac-os-x-mavericks/
